Concurrency

Concurrency is key to fast and efficient execution of LLM powered AI workflows.

Whether it’s making several network API or LLM requests, processing independent data concurrently, or managing various I/O-bound operations. Junjo embraces concurrency as a core principle of workflow execution.

Junjo is designed from the ground up to leverage the power of Python’s asyncio library, enabling you to build highly concurrent and efficient workflows. This page delves into how Junjo handles concurrency, its immutable state management, and the RunConcurrent utility for concurrent task execution.

Asyncio Native: The Core of Junjo’s Performance

Being “asyncio native” means Junjo is fundamentally built using Python’s async and await syntax and leverages the asyncio event loop. This offers significant advantages:

• Non-Blocking Operations: Asyncio allows Junjo to perform I/O-bound operations (like network requests or file system access) without blocking the main thread.
• Efficient Resource Utilization: By avoiding thread-based parallelism for I/O-bound tasks, Junjo can handle many concurrent operations with lower overhead compared to traditional multi-threaded approaches.
• Seamless Integration: You can easily integrate other asyncio-compatible libraries within your Junjo workflows.

Example: RunConcurrent()

When defining your workflow’s graph or subflow, you can easily execute nodes and subflows concurrently.

def create_record_workout_activity_graph() -> Graph:
  """
  Factory function to create a new instance of the workflow graph,
  so each workflow execution gets a fresh, isolated graph.
  """
  # Instantiate nodes
  count_activities = CountActivitiesNode()
  determine_when = DetermineWhenNode()
  activity_query_splitter = ActivityQuerySplitterNode()
  final_node = FinalNode()

  # Create a RunConcurrent instance, and specify the nodes to execute
  initial_analysis_node = RunConcurrent(
    name="Initial Analysis",
    items=[count_activities, determine_when]
  )

  # Define the graph structure
  return Graph(
    source=initial_analysis_node,
    sinks=[final_node],
    edges=[
        # Specify the RunConcurrent instance like any other Graph node
        Edge(tail=initial_analysis_node, head=activity_query_splitter, condition=IsMultipleActivities()),

        # Final transitions
        Edge(tail=activity_query_splitter, head=final_node),
        Edge(tail=initial_analysis_node, head=final_node),
    ]
  )

# Construct the workflow with factories so each execution
# creates a fresh, isolated graph and store
record_workout_activity_workflow = Workflow[RecordWorkoutActivityState, RecordWorkoutActivityStore](
  name="Record Workout Activity",
  graph_factory=create_record_workout_activity_graph,
  store_factory=lambda: RecordWorkoutActivityStore(
    initial_state=RecordWorkoutActivityState()
  )
)

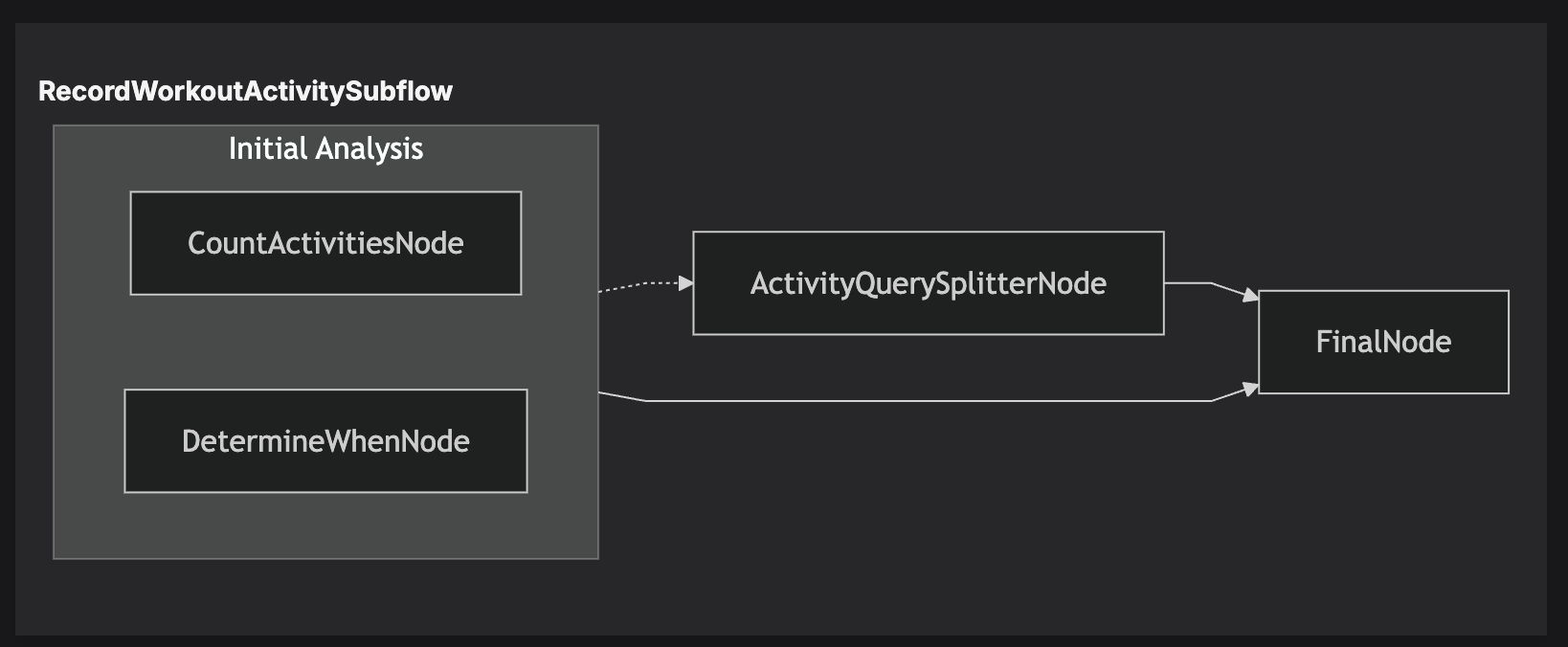

Example execution visualization:

This example demonstrates how RunConcurrent can be utilized to execute nodes concurrently. You can also execute entire Subflow instances concurrently.

State commits made by these nodes flow through set_state(), which validates and applies each committed update under the store lock. Junjo AI Studio allows you to step through state updates incrementally to see which nodes update state and when, even during high concurrency.

Immutable State: Ensuring Concurrency Safety

One of the challenges in concurrent programming is managing shared state. When multiple nodes attempt to modify the same piece of data simultaneously, it can lead to race conditions, data corruption, and unpredictable behavior.

Junjo addresses this by promoting immutable state updates via a store layer.

1. Stores define state update functions: The store is responsible for managing the instance of state. Functions defined in the store call set_state() to validate and commit explicit state updates safely.
2. Nodes execute state update functions: Nodes receive access to the store, and can inspect state snapshots and call store actions.

The following state and store example demonstrates Junjo’s redux-inspired state update pattern.

store.py

class SampleState(BaseState):
  data: str | None = None
  count: int = 0

class SampleStore(BaseStore[SampleState]):
    async def set_data(self, payload: str) -> None:
        await self.set_state({"data": payload})

    async def set_count(self, payload: int) -> None:
        await self.set_state({"count": payload})

    async def increment(self) -> None:
      await self.set_state({"count": self._state.count + 1})

    async def decrement(self) -> None:
        await self.set_state({"count": self._state.count - 1})

# node_set_data.py
class SetDataNode(Node[SampleStore]):
  async def service(self, store: SampleStore) -> None:
      # Get a detached snapshot of the current state and maybe do something with it
      state = await store.get_state()

      # Get some data
      data = fetch_data()

      # Update the store with the data
      await store.set_data(data)
      return

# node_increment.py
class IncrementNode(Node[SampleStore]):
  async def service(self, store: SampleStore) -> None:
      await store.increment()
      return

# node_decrement.py
class DecrementNode(Node[SampleStore]):
  async def service(self, store: SampleStore) -> None:
      await store.decrement()
      return

The above nodes could be executed concurrently using RunConcurrent. Each committed set_state() call is validated and applied safely by the store. Inside a store action like increment, reading self._state directly to derive the next update is acceptable because actions run on the store and each set_state() commit is validated and applied against the locked current state; outside of store actions, always read state with await store.get_state().

This approach significantly simplifies reasoning about concurrent execution, as you don’t have to manage locks around individual state commits. get_state() returns a detached snapshot for reads, and all real state changes still flow through store actions that call set_state().

Benefits of Junjo’s Approach to Concurrency

Junjo’s concurrency model, combining asyncio-native design with immutable state and utilities like RunConcurrent, offers several key benefits:

• Improved Performance and Throughput: Efficiently handles I/O-bound tasks and concurrent execution, leading to faster workflow completion.
• Simplified Development: Writing asynchronous code is natural with async/await. Immutable state reduces the mental overhead of managing concurrent data access.
• Enhanced Reliability and Stability: Store commits are validated and applied under a lock, reducing the risk of state corruption and making workflow behavior easier to inspect.
• Scalability: Well-suited for building applications that need to handle a large number of concurrent operations or scale with increasing load.

Best Practices for Designing Concurrent Junjo Workflows

When designing concurrent workflows with Junjo, consider the following:

• Identify Independent Tasks: Look for parts of your workflow that don’t depend on each other’s immediate output. These are good candidates for RunConcurrent.
• Keep Nodes Focused: Design nodes to perform specific, well-defined tasks. This makes it easier to reason about their concurrent behavior.
• Understand State Flow: Be clear about what state each concurrent branch needs and what state it will produce. Junjo’s immutable state helps, but clear design is still key.
• Handle Errors Gracefully: In concurrent operations, individual tasks might fail. Ensure your workflow has appropriate error handling mechanisms for tasks running within RunConcurrent.
• Profile and Optimize: Use profiling tools to identify bottlenecks in your asynchronous workflows and optimize critical paths.

Conclusion

Junjo provides a powerful and Pythonic framework for building concurrent directed graph workflows. Its asyncio-native architecture, immutable state updates, and features like RunConcurrent empower developers to create high-performance, scalable, and reliable Python workflow execution systems. By understanding and leveraging these concurrency features, you can unlock the full potential of Junjo for your complex processing needs.
