Getting Started

Installation

Junjo Python Library Installation:

# With pip
pip install junjo

# With poetry
poetry add junjo

# With uv
uv add junjo

Basic Usage

The following is a basic, single file example of how to use Junjo to create a simple workflow. This example demonstrates the basic concepts of defining a workflow, creating nodes and edges, and executing the workflow.

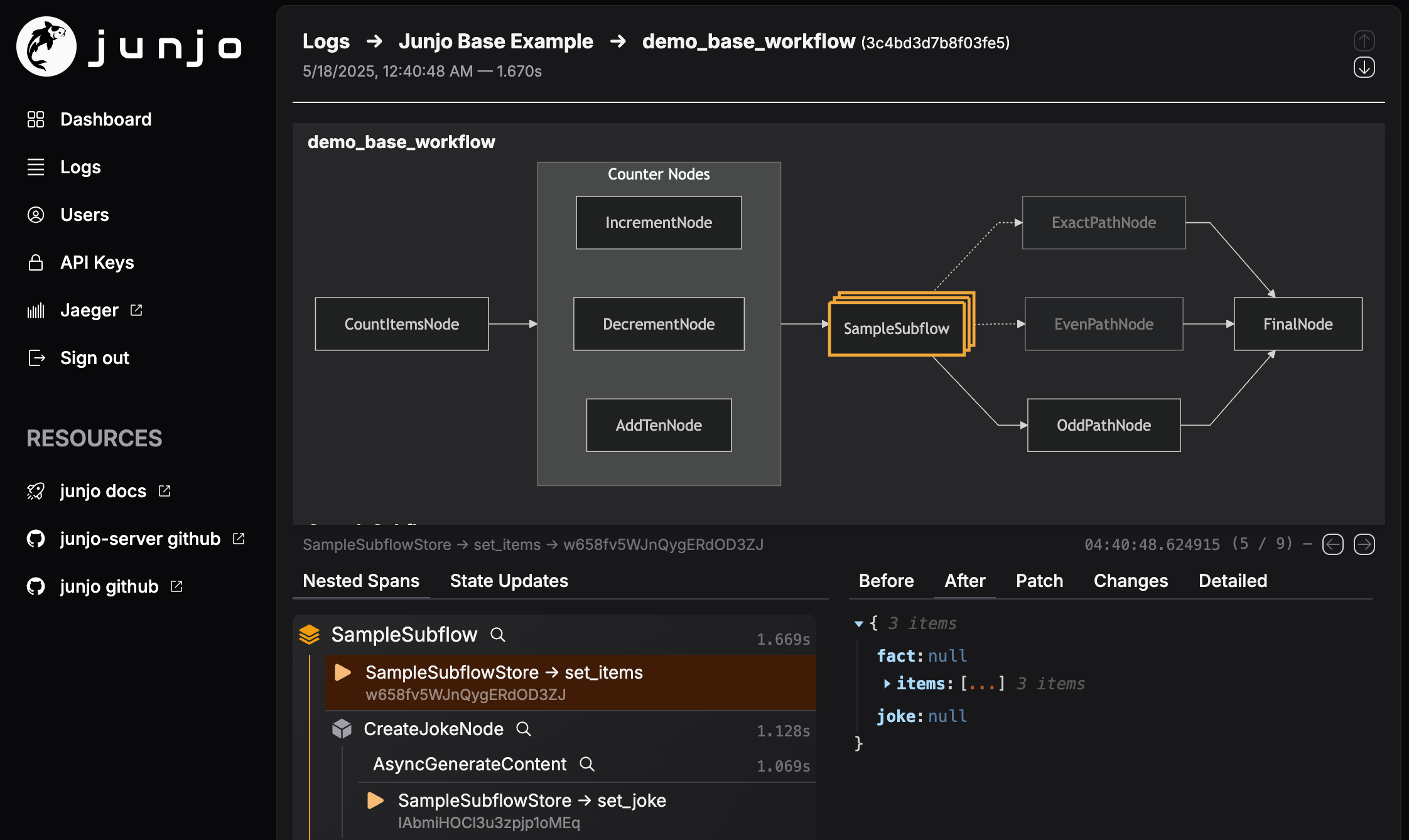

The above screenshot shows the telemetry visualization of this getting started example. Visually step through the workflow nodes and individual state updates.

More advanced examples can be found in the examples directory of the Junjo repository.

from junjo import BaseState, BaseStore, Condition, Edge, Graph, Node, Workflow

# Run With
# python -m main
# uv run -m main

async def main():
    """The main entry point for the application."""

    # Define the workflow state
    class SampleWorkflowState(BaseState):
        count: int | None = None # Does not need an initial state value
        items: list[str] # Does need an initial state value

    # Define the workflow store
    class SampleWorkflowStore(BaseStore[SampleWorkflowState]):
        # An immutable state update function
        async def set_count(self, payload: int) -> None:
            await self.set_state({"count": payload})

    # Define the nodes
    class FirstNode(Node[SampleWorkflowStore]):
        async def service(self, store: SampleWorkflowStore) -> None:
            print("First Node Executed")

    class CountItemsNode(Node[SampleWorkflowStore]):
        async def service(self, store: SampleWorkflowStore) -> None:
            # Get the state and count the items
            state = await store.get_state()
            items = state.items
            count = len(items)

            # Perform a state update with the count
            await store.set_count(count)
            print(f"Counted {count} items")

    class EvenItemsNode(Node[SampleWorkflowStore]):
        async def service(self, store: SampleWorkflowStore) -> None:
            print("Path taken for even items count.")

    class OddItemsNode(Node[SampleWorkflowStore]):
        async def service(self, store: SampleWorkflowStore) -> None:
            print("Path taken for odd items count.")

    class FinalNode(Node[SampleWorkflowStore]):
        async def service(self, store: SampleWorkflowStore) -> None:
            print("Final Node Executed")

    class CountIsEven(Condition[SampleWorkflowState]):
        def evaluate(self, state: SampleWorkflowState) -> bool:
            count = state.count
            if count is None:
                return False
            return count % 2 == 0

    def create_graph() -> Graph:
        """
        Factory function to create a new instance of the sample workflow graph.
        This ensures that each workflow execution gets a fresh, isolated graph,
        preventing state conflicts in concurrent environments.
        """
        # Instantiate the nodes
        first_node = FirstNode()
        count_items_node = CountItemsNode()
        even_items_node = EvenItemsNode()
        odd_items_node = OddItemsNode()
        final_node = FinalNode()

        # Create the workflow graph
        return Graph(
            source=first_node,
            sinks=[final_node],
            edges=[
                Edge(tail=first_node, head=count_items_node),

                # Branching based on the count of items
                Edge(tail=count_items_node, head=even_items_node, condition=CountIsEven()), # Only transitions if count is even
                Edge(tail=count_items_node, head=odd_items_node), # Fallback if first condition is not met

                # Branched paths converge to the final node
                Edge(tail=even_items_node, head=final_node),
                Edge(tail=odd_items_node, head=final_node),
            ]
        )

    def create_workflow() -> Workflow[SampleWorkflowState, SampleWorkflowStore]:
        """
        Helper function to build the workflow used in this example.
        """
        return Workflow[SampleWorkflowState, SampleWorkflowStore](
            name="Getting Started Example Workflow",
            graph_factory=create_graph,
            store_factory=lambda: SampleWorkflowStore(
                initial_state=SampleWorkflowState(
                    items=["laser", "coffee", "horse"]
                )
            )
        )

    # Create and execute the workflow
    workflow = create_workflow()
    result = await workflow.execute()
    print("Final state: ", result.state.model_dump_json())

if __name__ == "__main__":
    import asyncio
    asyncio.run(main())
